Achieve Precision and Reliability with a Portable Current Calibrator

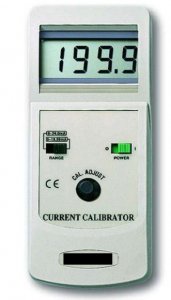

The LUT0010 Current Calibrator provides accurate and reliable current calibration for process devices, making it an essential tool for various industrial applications.

Exceptional Features:

1. Precision Current Source: Offers the quality and accuracy of a handheld calibrator with an adjustable 0-24 mA current source, available in two ranges for precise calibration tasks.

2. High Load Capacity: The current calibrator can drive loads up to 500 ohms, making it suitable for a wide range of devices and ensuring reliable operation.

3. Portable Design: Compact and lightweight, designed for easy portability and operation in various environments, ensuring convenience for field calibration.

4. Accurate and Reliable: Ensures high accuracy with a clear LCD display, providing precise readings for current measurements.

5. Easy to Use: Features user-friendly operation with a simple interface and quick sampling time for efficient calibration processes.

Technical Specifications:

- Display:

  - Type: LCD

  - Max Display Counts: 1999

  - Digit Size: 13 mm (0.5")

- Function:

  - mA Current Source with Two Ranges:

    - 0-19.99 mA (Resolution: 0.01 mA, Accuracy: ±0.25% FS + 1 d)

    - 0-24 mA (Resolution: 0.1 mA, Accuracy: ±0.5% FS + 1 d)

- Sampling Time: Approx. 0.4 second

- Power Supply: 9V battery (006P, MN1604/PP3 or equivalent)

- Dimensions: 185 x 78 x 38 mm (7.3 x 3.0 x 1.5 inches)

- Weight: 265 g (0.58 lb including battery)

- Operating Environment:

  - Temperature: 0 to 50℃ (32 to 122℉)

  - Humidity: Less than 80% RH

- Accessories Included:

  - Operational Manual: 1 PC

  - Cable with alligator pairs (red & black), LN-TL421: 1 PC

Invest in Current Calibrator for precise and reliable current calibration, ensuring high performance and versatility in various industrial applications.
